In the face of complex live performances, will be set on the stage alone set a console for the stage monitor. Stage listening sound reinforcement is to let the actors on stage to hear their own performances, singing and speaking sound reinforcement system. Compared to the production of television signals and live sound reinforcement, the stage monitoring sound reinforcement often has a very important role. At present, in order to stage the visual beauty and ease of operation, stage monitor speakers are gradually being replaced by wireless personal monitoring system. Flexible and compact wireless personal monitoring system is not limited by the distance and sound blocking, by more and more sound division of the favor. In addition, the sound division in order to pursue the sound of the stage clean, to avoid listening to the sound of the speaker and then picked up by the microphone, will recommend all the stage monitoring are using personal monitoring system and no longer use the traditional return speaker, which has been accepted by some actors The Regardless of the form of the stage monitor, the role is the same, that is, with a better monitor the quality of performance with the actors.
In the performance of special music, especially through the personal listening system to the program sound to the actors wearing headphones, will make the actors hear more real, so that performers have a greater stage mobility flexibility, can reduce the stage The degree of dispersion under the premise of the maximum feedback before the gain, and get a better mixing effect.
1 stereo / mixed / mono monitor mode
Personal monitoring system is sometimes connected to a stereo input, sometimes connected into a single channel input, which depends on the needs of the actors may be. Wearing a headset actor is generally not only listen to the voice of the individual monitoring system, but also to hear the sound of the stage monitor the speaker. Personal monitoring system in the human voice, reverberation and the proportion of music and the stage monitor the proportion of speakers in the premise, often the vocals will be part of the mixed mode to send a little more. But each actors habits and requirements are different, for example, some actors in the personal listening system headphones accompaniment volume is high, some actors require a large voice, etc., according to different circumstances at any time to adjust.
1.1 Stereo mode

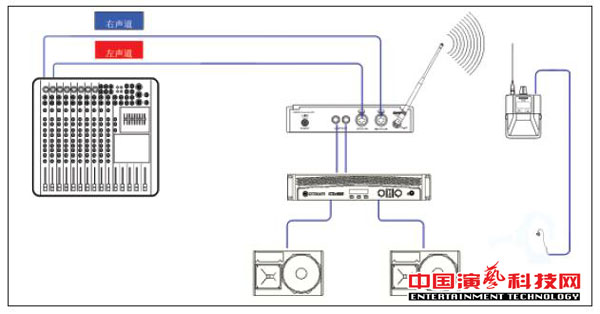

Stereo mode emits dual channel signals. As shown in Figure 3.
4Stereo monitor mode
(1) connect the mixer to the personal monitoring system transmitter; (2) set the transmitter output mode to stereo mode; (3) set the personal monitoring system receiving mode for the stereo mode. 1.2 Mixed mode Mixed mode allows the actor to listen to two channels from the two different channels at the same time, but also balance the volume of both. Figure
For Example。Hybrid Monitor Mode Illustration 1.3 Mono Mode Mono Mode Transmit Mono Signal to Pockets Receiver. (1) Connect the mixer to the transmitter; (2) Set the transmitter output mode to mono mode. 2 Multi-Channel Monitor System Application Mode 2.1 Stereo Mode Use LOOP output L and port to copy audio signals to other devices. As shown in Figure 5.Multi-Channel Monitor Stereo Mode 2.2 Mixed Mode Multi-Channel Monitor Hybrid mode meets the complex needs of different performers in the live performance environment. As shown in Figure 6. When the actor uses the personal monitoring system, often on both sides of the stage to set up the audience effect of the microphone, the audience to reflect the collection, such as the audiences applause, laughter and live effect sound, properly sent to the actors headset, so that it does not Because of wearing a headset and can not hear the audiences voicesound. This is the work of listening to the sound engineer in the use of personal monitoring system should be able to better enhance the actors and the interaction between the audience.Multi-channel monitoring mixed mode In addition, sometimes also to the stage to supervise or direct a microphone, the field instructions through the wireless return to the lead singer or musicians, so that live performances better synchronization, which is difficult to do traditional monitor speakers of. 3 connected to the stage monitor speaker application mode connected to the stage monitor speaker application mode to meet the live performance environment can not be wired to the stage listening needs. As shown in Figure 7.接Applying the Monitor Application Mode 4 Connecting the Recording Device Application Mode Connecting the recording device application mode to meet the needs of the live performance environment can not be wired to the tape recorder monitoring needsReceived Recording Equipment Application Mode This article excerpts from "Performing Arts". As shown in Figure 8. Technology "Issue 5 of 2012
