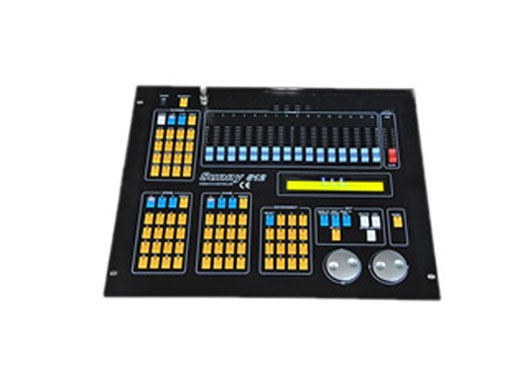

512 Moving Head Light Console
control
Model: SC-512
DMX512 digital output, 512DMX control channel
2 optically isolated independent drive signal output ports
Can control 32 16-channel computer lights
Detail Info
Model: SC-512
DMX512 digital output, 512DMX control channel
2 optically isolated independent drive signal output ports
Can control 32 16-channel computer lights
You can control the scene with any set of joysticks. Manual A / B field preset.
Chase effect speed adjustable (0.1 ~ 9.9 seconds)
Shutdown data remains
Wrong operation sounds
Optional 12V goose work lights
Power: AC 100--240V 50--60Hz
Volume: 483 x 400 x 105 (mm)
DMX512 digital output, 512DMX control channel
2 optically isolated independent drive signal output ports
Can control 32 16-channel computer lights
1600 chase program step storage capacity. 48 chase program, up to 100 steps per procedure. Each step speed,
gradient parameters are set independently. Optional music sync or manual rate control
Can be creeping four chase program, 48 scenes, and at the same time on 32 computer lights for searchlight operation.
Maintain data to maintain DMX signal output connector; XLR-3F x 2
Remember 99 scenes, scene 0 for the fixed black field.You can control the scene with any set of joysticks. Manual A / B field preset.
Chase effect speed adjustable (0.1 ~ 9.9 seconds)
Shutdown data remains
Wrong operation sounds
Optional 12V goose work lights
Power: AC 100--240V 50--60Hz
Volume: 483 x 400 x 105 (mm)
